Coal Impactor Coal Impactor

Coal Impactor

2300000 INR/Unit

Product Details:

  • Product Type Coal Crushing
  • Material Steel
  • Capacity 500 T/hr
  • Automatic Yes
  • Voltage 440 Volt (v)
  • Color Orange
  • Click to view more
X

Coal Impactor Price And Quantity

  • 1 Unit
  • 2300000 INR/Unit

Coal Impactor Product Specifications

  • Yes
  • 440 Volt (v)
  • Coal Crushing
  • Orange
  • Steel
  • 500 T/hr

Coal Impactor Trade Information

  • Cash in Advance (CID) Cheque Cash Advance (CA) Letter of Credit (L/C)
  • Months
  • Middle East Central America South America Asia Eastern Europe North America Western Europe Africa Australia
  • All India

Product Description

These Coal Impactors are used for crushing brittle and soft minerals such as coal, limestone, slag, gypsum etc. This machine is known for its extremely high through puts, reduction ratios, which is higher than 10 and are normal, maximum operational reliability and easy maintenance.

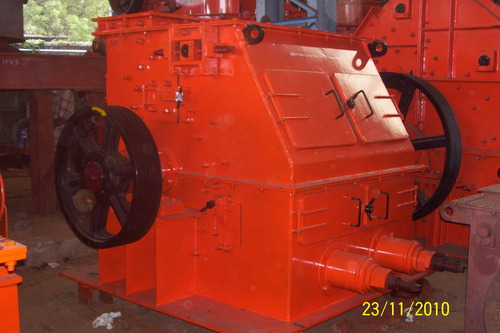

We offer Coal Impactor that are slow speed impactors and their core parts include rotor assembly with blow bars, bearings and flywheel, lower body, upper body with feeding chute and upper body rear side. Our slow speed impactors are engineered to provide an extremely high level of precision based performance. The slow speed impactor consists of a fabricated enclosure that features adjustable 2 to 3 breaker plates and these plates remain in a suspended position. A massive rotor with 2 to 6 blow bars rotates with velocity of 25m/sec to 35m/sec. Then the material is fed into the rotor of the slow speed impactor in such a manner that the blow bars is able to hit the material with such force that the material shatters in the space before it hits the break wall. The material is further crushed and again impacted back for further crushing.

We also specialize in manufacturing washery reject crusher that helps with crushing brittle and soft minerals such as limestone and coal. Our machines are engineered to lasts for a really long time and incur only minimal wear and tear. Our slow speed impactors, coal impactors and washery reject crusher are designed to crush and produce fine particles. They are made from quality components that can withstand heavy loads and high pressure. Our slow speed impactors are available in different diameter sizes and depending on our clients requirements, we can systematically design and manufacture the right kind of machine. Our after sales service and support team ensures that the equipment continues to work smoothly and in case of any assistance, we are always there to help our clients.

Specifications of Coal Impactor:

  • Diameter: 600 Mm To 1600 Mm
  • Width: 400 Mm To 2000 Mm

Coal Impactors Benefits

  • Cable of making uniform size reduction.
  • Enable effectual combustion and advanced utilization in several industrial processes.
  • Have been made to generate steam as well as electricity.
  • Popular as the profitable solution for coal processing, as they save energy and cut down the operating costs.

Download Brochure

FAQs of Coal Impactor:

Q: What is a coal impactor?

A: This is also known as a coal smasher, which is a machine which can be used to reduce the size of coal so that it can be used for burning or further handling.

Q: How does a coal impactor work?

A: The coal impactor works by taking care of coal into a chamber with turning sledges or blow bars. The sledges or blow bars strike the coal, breaking it into more modest pieces. The compressed coal is then made through a screen or mesh, in which the bigger parts need more processing as well as additional handling.

Q: What are the primary parts of a coal impactor?

A: The main parts of a coal impactor are rotor with blow bars or sledges. The machine also incorporates a screen or mesh for measuring the molecule, a chute for input of coal, a drive structure to control the rotor, a devastating chamber, etc. Other main part of the impactor is the security gadgets which can protect against over-burdening and sticking.

Q: What are the advantages of utilizing a coal impactor?

The coal impactors provide several functional benefits in the process of coal ignition and handling. The machines ensure productive smashing and uniform size reduction of coal, making sure that improved ignition execution and predictable molecule sizes can be attained. The machines boast of advanced level of coal movability and facilitate simple stockpiling, usage and transportation.

Q: Can a coal impactor handle various sizes and sorts of coal?

A: Certainly, coal impactors are capable of dealing with the coal of different sizes and different types. In addition, these can handle different coal sizes, be they are in lumps to better particles. All models of the machine have their own shifting limits as well as capacities. Make sure that you choose the most suitable one for specific coal prerequisites

Q: What security highlights are integrated into coal impactors?

A: Coal impactors include several protective elements to protect the administrators as well as the actual machine. These highlights have wellbeing gatekeepers or covers to anticipate incidental contact with assorted moving machine parts. The stop fastens or switches have been provided to deal with over-burdening.
